Client Challenge

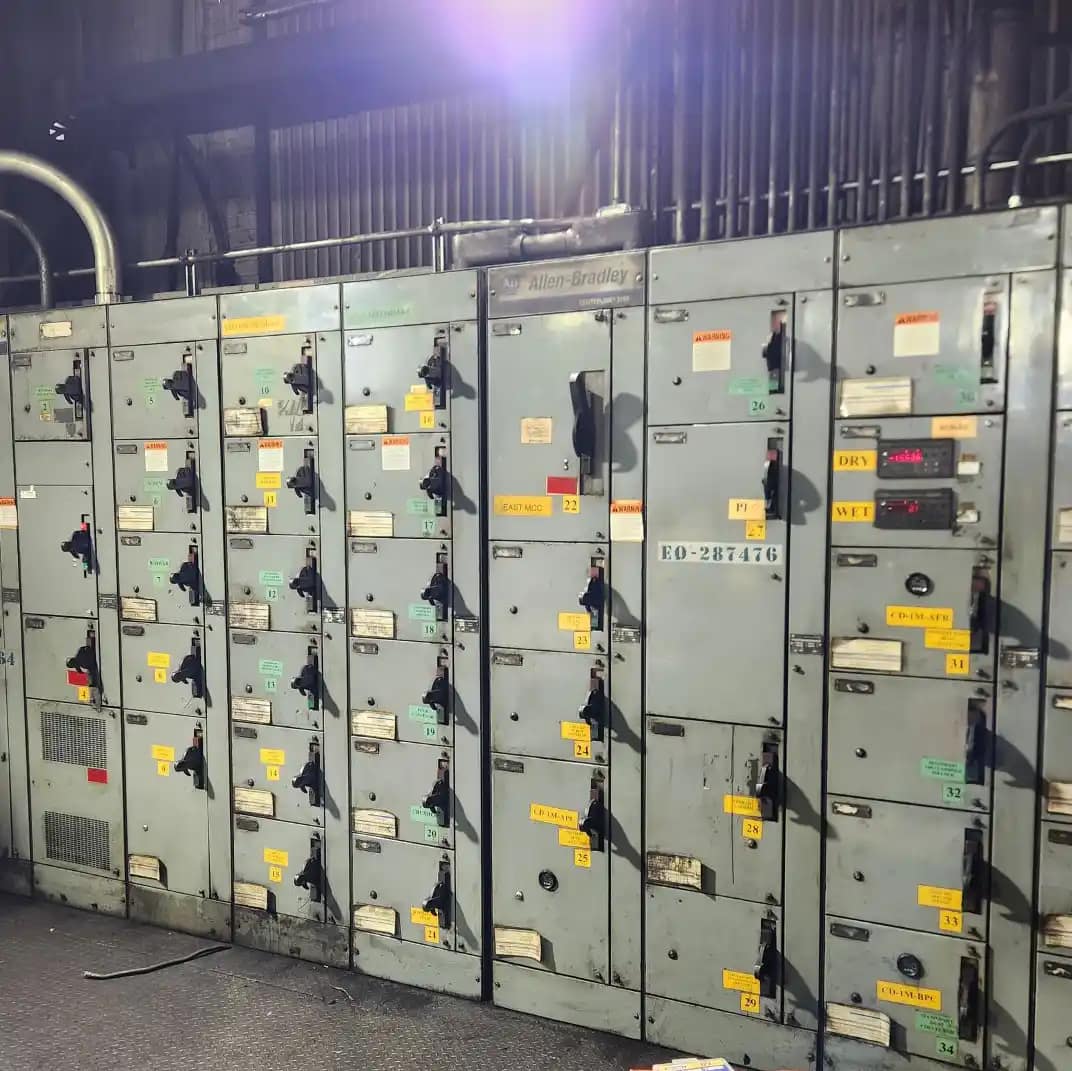

The client’s porous controls system relied on an SLC 504 PLC platform that had reached end-of-life. Spare parts were increasingly difficult to source, and the system’s limited flexibility restricted modernization efforts. Engineers expressed concern that the controls architecture could not sustain long-term reliability, creating the possibility of extended downtime if a major failure occurred.
In addition to obsolescence, the control system lacked integration capabilities with modern platforms. The inability to seamlessly communicate with other PLCs made coordination across production processes more challenging than necessary. The legacy operator interface also provided limited visibility into real-time system performance, restricting proactive decision-making and adding unnecessary complexity for operators.
Without a comprehensive upgrade, the client risked operational inefficiency, costly downtime, and higher maintenance burdens — all of which would directly impact production goals and long-term competitiveness.
Solution
DSI Innovations proposed a structured controls migration plan designed to minimize disruption while modernizing the platform for long-term success.
Key steps in the upgrade included:
-
Hardware Migration: Procured and supplied all necessary hardware to transition the SLC 504 PLC system into a CompactLogix 1769 platform, re-using the existing L33ER processor and I/O cards as specified by the client.
-
Comprehensive Documentation: Conducted onsite verification, labeling, and documentation of all wiring. Delivered updated electrical design files in both DWG and PDF formats for client use.
-
Panel Fabrication & Testing: Designed and built a new CompactLogix control cabinet, performing point-to-point and power-up testing prior to delivery.
-
Installation & Integration: Removed the outdated SLC 504 system and installed the new CompactLogix panel, complete with Ethernet cable pulls for modern networking. Integrated an Ignition-based Panel PC operator station to enhance system visibility and user interaction.
-
Seamless Communication: Integrated the upgraded system with two additional PLCs and ensured proper communication and messaging between all platforms.
The entire onsite installation and commissioning process was completed in just five days, coordinated closely with client staff to minimize downtime.
Results
The upgrade delivered measurable improvements in reliability, efficiency, and long-term value.
-
Increased Reliability: The CompactLogix platform replaced an end-of-life control system, reducing the risk of unexpected failures and downtime.
-
Future-Proofed Operations: The modern architecture enables seamless expansion and integration, supporting the client’s evolving automation needs.
-
Enhanced Visibility: The Ignition-based operator station provides real-time monitoring, better user interfaces, and actionable insights for operators.
-
Improved Maintainability: Documented wiring and updated electrical drawings simplify future troubleshooting, training, and maintenance tasks.
-
Rapid Delivery: The entire migration, from removal to commissioning, was executed in just five days, minimizing disruption to production schedules.
By modernizing the porous controls system, the client gained a stable, flexible, and fully integrated controls platform that positions their facility for long-term operational success.
